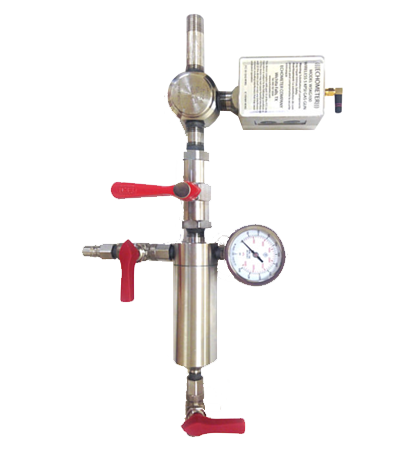

Echometer Wireless 5000 PSI Gas Gun

Overview

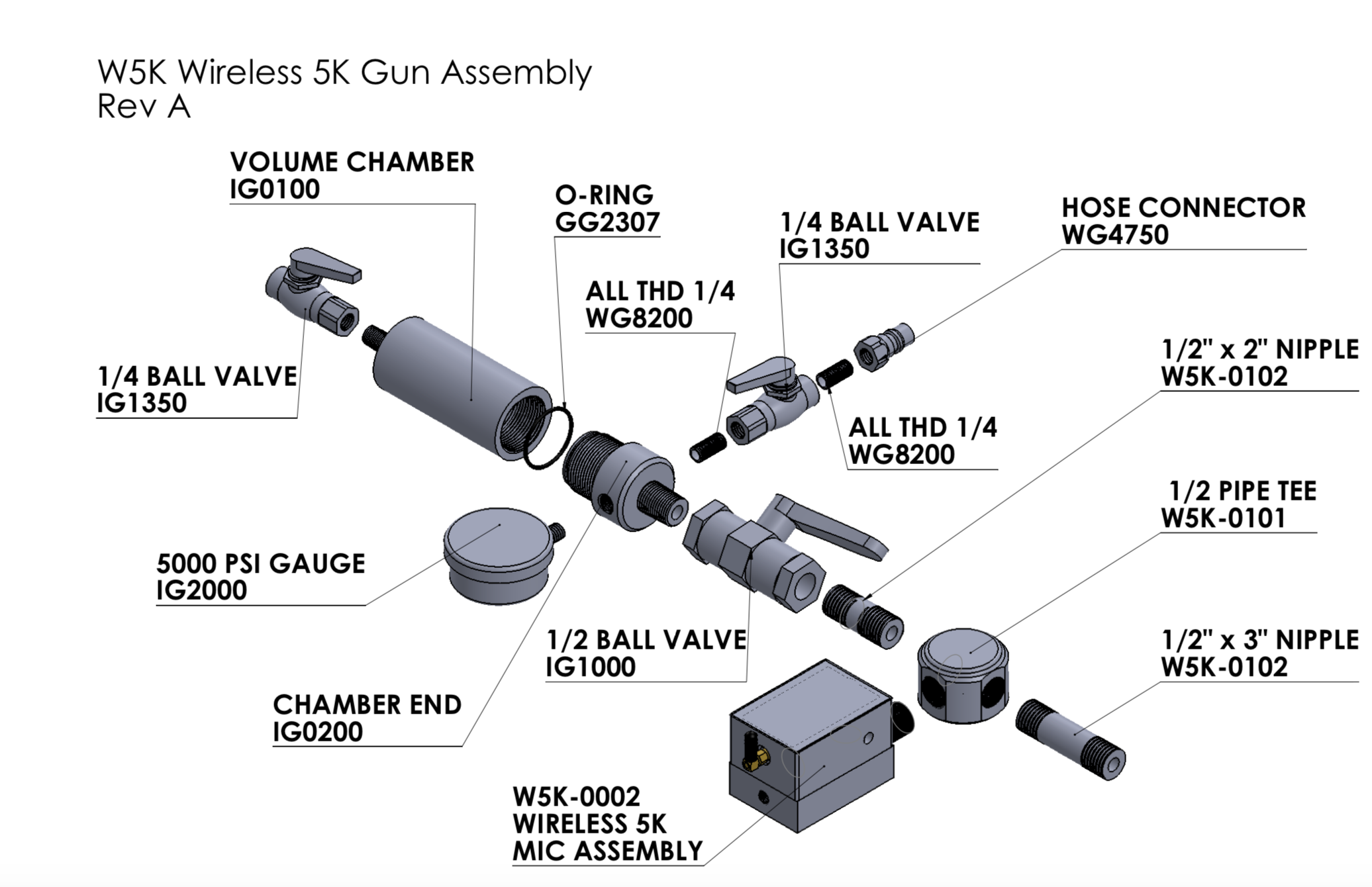

The Wireless 5000 PSI Gas Gun can be operated in implosion mode on wells with a casing pressure greater than 200 PSI. The 1/2" ball valve is rapidly opened to release gas from the well into the volume chamber. This action generates a rarefaction (negative) pressure pulse. A compressed gas source is not needed in the implosion mode.
Use the explosion mode on low-pressure wells (less than 200 PSI), and where pressurized gas is available at a pressure greater than the casing annulus pressure. In the explosion mode, the gas gun volume chamber is pressured above the casing pressure. Opening the gas valve results in a positive compression pressure wave being generated which travels down the casing annulus gas.
When the Wireless 5000 PSI Gas Gun becomes dirty due to debris, the volume chamber and microphone assembly may be flushed with a solvent to remove the debris. Please refer to the W5KG Operating Manual for further instruction on maintenance and operation.

Key Features
- Fires manually
- Operates in Implosion or Explosion mode
- Designed for use with the wireless system
- Limited to 5000 PSI working pressure

Specifications
- Rated at 5000 PSI
- High-performance microphone
- 5 cubic inch volume chamber
- 5000 PSI pressure gauge
- 5000 PSI pressure transducer
