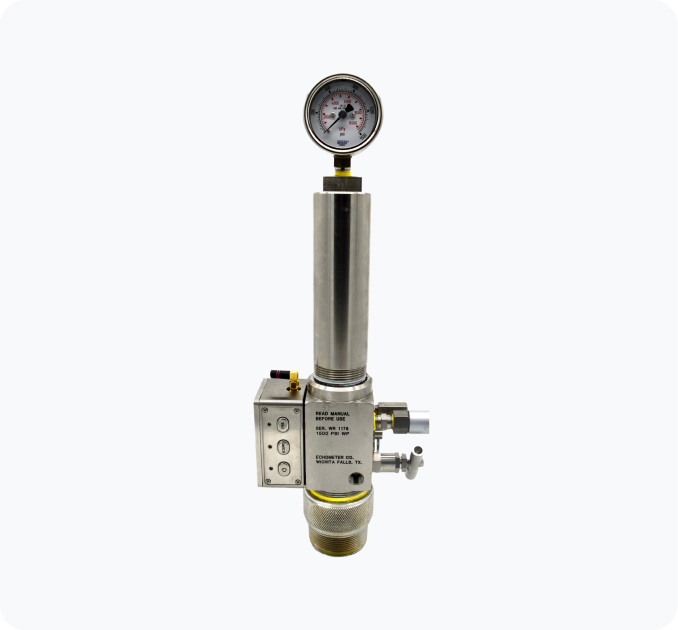

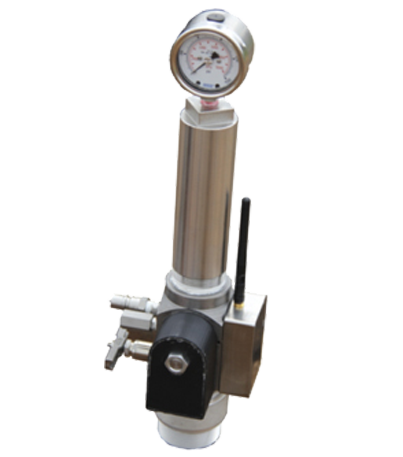

Echometer Wireless Remote Fire Gas Gun

The Wireless Remote Gas Gun utilizes a high performance microphone with an excellent signal-to-noise ratio along with a 12 cubic inch volume chamber.
Echometer

Overview

The Wireless Remote Gas Gun utilizes a high performance microphone with an excellent signal-to-noise ratio along with a 12 cubic inch volume chamber.

A solenoid valve releases gas from the gas gun volume chamber into the well. The solenoid is operated automatically from the wireless system. The Wireless Remote Fire Gas Gun cannot be operated in the implosion mode.

Echometer Wireless Remote Fire Gas Gun

Key Features


  • Fires remotely or manually
  • Operates in explosion mode only
  • Designed for use with the wireless system
  • Limited to 1500 PSI working pressure
Echometer Wireless Remote Fire Gas Gun

Specifications


  • Rated at 1500 PSI
  • High-performance microphone
  • 12 cubic inch volume chamber
  • 1500 PSI pressure gauge
  • 1500 PSI pressure transducer

Maintenance

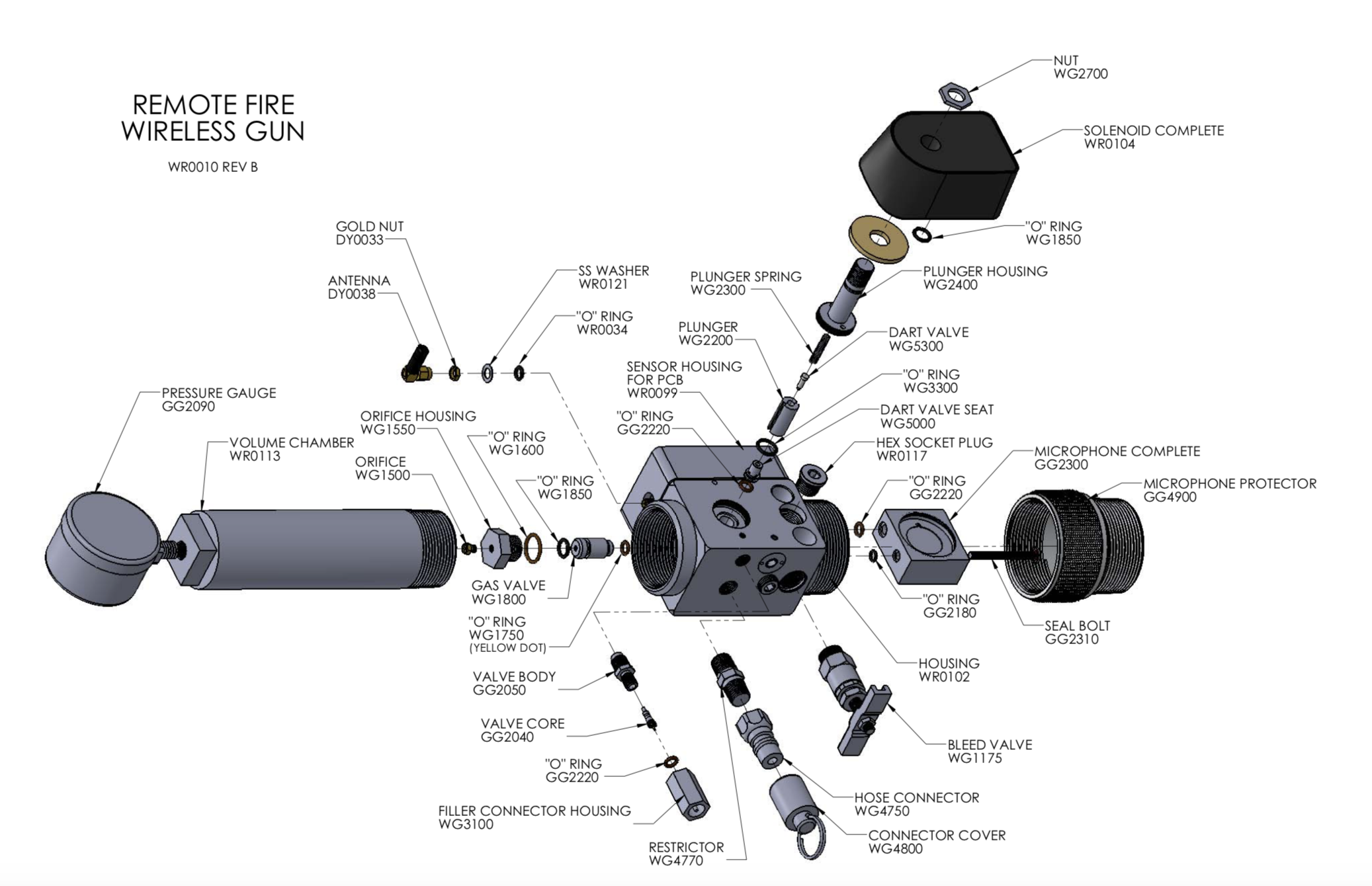

The Wireless Remote Fire Gas Gun utilizes a solenoid with a small dart valve and a small orifice. The dart valve releases gas from behind a ½ inch moveable piston that allows gas from the gas gun volume chamber to flow into the well. These small moving parts will become clogged and inoperable if sand and debris are blown from the well into the gas gun volume chamber. Debris and sand will prevent the dart valve from properly sealing, and gas will bleed continuously from the gas gun volume chamber into the atmosphere. This requires that the gas gun be disassembled, cleaned and reassembled.
