Echometer Model H

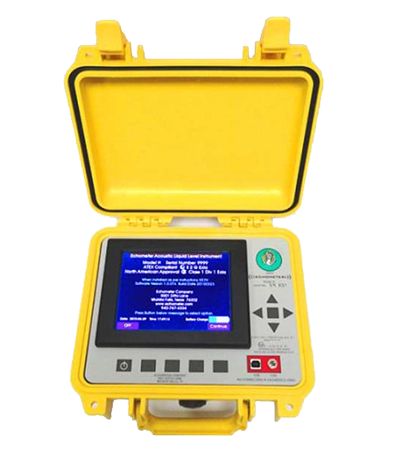

The Echometer Model H is a stand alone, battery powered microprocessor controlled digital acoustic signal processor, recorder and display unit. When installed and used in accordance with instructions it is designed for operation in hazardous environments. Optimize your oil well production.
Product Number
EQ0750
Echometer Model H: Overview
The Model H user has two options to acquire data: 1) Quick Shot Mode - Once the instrument is powered up, it takes only three
Echometer Model H: Key Features
- Advanced acoustic liquid level depth instrument
- Digital signal acquisition, processor and display unit
- Enhanced interpolation of acoustic data
- New anomaly marker analysis for gas and gas lift wells
- Certified for use in hazardous environments
- Interpretation of reflections
- Filter Operation
- Minimal number of steps to obtain a liquid level depth measurement
- User manages the data acquisition and controls the flow of the program
Echometer Model H: Specifications
- Weatherproof
- Dustproof plastic housing
- 11" x 10" x 5"
- Weighs 11 pounds (5 kg)
- Panel incorporates both soft-keys and navigational 5-button star input keypad
- Self-contained rechargeable battery
- Battery rated at 9 Amp-Hour
- Current drain is .825 Amps operating and .325 Amps standby
- Battery operating ON-time is approximately 10.9 hours
Well Monitoring Equipment
The Wireless Echometer Base Station, with GPS well site location, is connected to the USB port of the computer and communicates with all the Wireless sensors that include:
Compact Gas Gun
The compact gas gun offers superior performance due to its rugged, noise-canceling dual-disk microphone.
Wireless 5000 PSI Gas Gun
The Wireless 5000 PSI Gas Gun is a manually operated gas gun excellent for use in gas lift, flowing, and high pressure shut-in wells.
Wireless Polished Rod Transducer
The data gathered by the device allows for the software analysis of polished rod power requirement, pumping unit beam loadings, rod loadings, and pump performance.
Wireless Horse Shoe Transducer
Horseshoe Dynamometer system is designed to facilitate installation of the horseshoe load cell, and to eliminate measurement errors caused by changes in pump spacing.
