Echometer Wireless Well Analyzer

The station allows simultaneous acquisition of liquid level, dynamometer and pressure records as controlled by the user via the TAM software either at the laptop or at the sensor location.

Echometer

Echometer Wireless: Overview

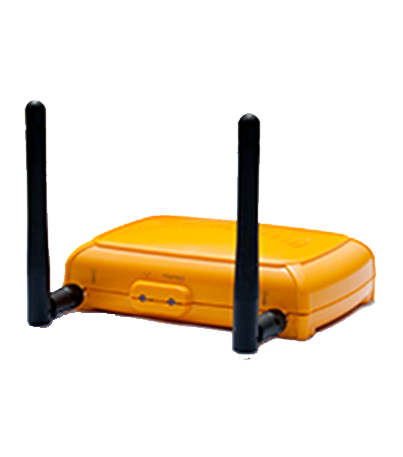

The Wireless Echometer Base Station, with GPS well site location, is connected to the USB port of the computer and communicates with all the Wireless sensors. The station allows simultaneous acquisition of liquid level, dynamometer and pressure records as controlled by the user via the TAM software either at the laptop or at the sensor location. The Wireless Sensors have been designed with state of the art microchips to achieve low noise, high accuracy and resolution with minimum power usage for long life of the rechargeable batteries. Typical range of over 450 ft has been achieved in most installations. Wireless sensor set up and installation is done efficiently by using the control buttons and LED displays, mounted on the sensor's body, which are used to power up, adjust, and calibrate the sensors when installed at the wellhead without having to view the computer screen.

Echometer Wireless: Key Features

Echometer Wireless: Key Features


  • GPS for Automatic Well Selection
  • Simultaneous Fluid Level and Dynamometer
  • Safer Operation
  • Enhanced Analysis Options
  • Real Time Surface and Pump Dynamometer
  • Real Time Pump Animation
  • Flexible Dynamometer and Acoustic Overlays
  • Easier Software Navigation
  • Easier and Faster Installation
  • Improved Experience at Well
  • Dynamometer Playback and Video Generation

Wireless Well Monitoring Equipment

The Wireless Echometer Base Station, with GPS well site location, is connected to the USB port of the computer and communicates with all the Wireless sensors that include:

Wireless Remote Fire Gas Gun

Wireless Remote Fire Gas Gun

The Remote Fire Gas Gun utilizes a high performance microphone with an excellent signal-to-noise ratio along with a 12 cubic inch volume chamber.
Wireless 5000 PSI Gas Gun

Wireless 5000 PSI Gas Gun

The Wireless 5000 PSI Gas Gun is a manually operated gas gun excellent for use in gas lift, flowing, and high pressure shut-in wells.
Wireless Polished Rod Transducer

Wireless Polished Rod Transducer

The data gathered by the device allows for the software analysis of polished rod power requirement, pumping unit beam loadings, rod loadings, and pump performance.
Wireless Horse Shoe Transducer

Wireless Horse Shoe Transducer

Horseshoe Dynamometer system is designed to facilitate installation of the horseshoe load cell, and to eliminate measurement errors caused by changes in pump spacing.
