Pollution Control Stuffing Boxes
WSI's most advanced stuffing box family. All models feature an automatic flapper that closes the wellbore instantly when a polished rod break is detected - zero operator intervention. NACE MR-01-75 compliant. Available from 1500 to 5000 PSI with Super Dome™ or cone packing.
Wellhead Systems Inc.

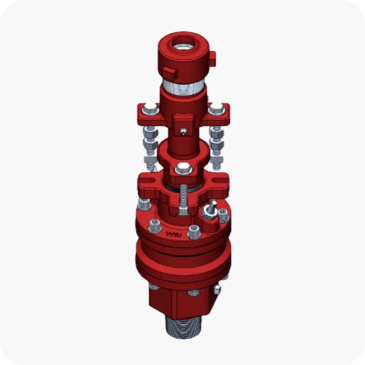

Premier Pollution Control Double Pack PCDP
Two Independent Chambers · Auto-Flapper · NACE · ½" Test Port

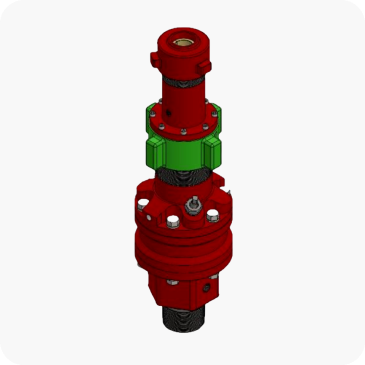

BS Premier Pollution Control BSPCDP 1.5K
Auto-Flapper · No-Bolt Cap · NACE · Super Dome™ Available
1500 PSI

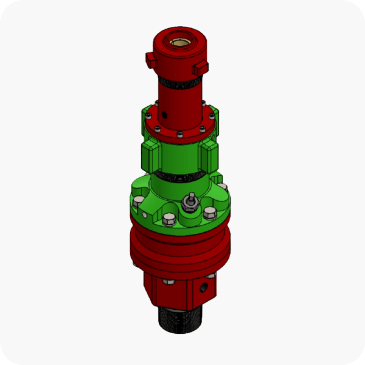

BS Premier Pollution Control BSPCDP 3K
Auto-Flapper · No-Bolt Cap · NACE · Super Dome™ Standard
1500 PSI
1500 PSI

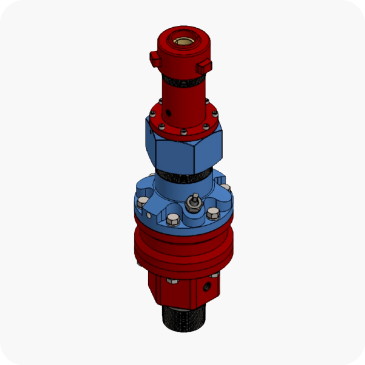

Premier Pollution Control BSPCDP 5K
Auto-Flapper · No-Bolt Cap · NACE · Super Dome™ Standard
5000 PSI
5000 PSI
Select Your Compound
WSI continually tests new compounds against ever-changing well conditions. Cone packing fits rods 1" through 1-¾" in sets of 4 (3 top cones + 1 bottom cone). Field testing is recommended for your specific conditions.
Soft
Sweet crudes with high oil-to-water ratios and low abrasives
SBR - EconomyHigh Temp
Steam injection wells producing sweet crude
Super Dome™
Low friction, excellent chemical resistance; one-time retrofit kit
Hard
Sweet crudes with low oil-to-water ratios
KB™
Kevlar brass - CO₂, H₂S, excellent abrasion; most proven for steam
Crown Ring
For JSB and WSB threaded cap stuffing boxes
Teflon
Low oil-to-water ratios; reduces rod noise in sensitive areas
SBR - EconomySuper Life™ 575
Sweet crudes, high oil-to-water; also in crown rings
"V" Style
NBR or HSN — used in E-LUG™ for Classic and Premier models
Brass Filled
Reduces polished rod scale build-up; sweet crudes
SB Silicone
High water-cut; resistant to gas decompression
Ready to order your Stuffing Box?
Our team will help you select the right product type, pressure rating, and packing compound for your well conditions.
