Flanged Blow-Out Preventers
High-pressure flanged BOPs with integral tee, patented Snap-Loc™ seal, and new inter-locking ram design. Single or dual ram configurations. Manual or hydraulic actuation. Available in LP or studded side outlets. The 1000F dual ram model reaches 10,000 PSI — the highest BOP rating WSI offers.
Wellhead Systems Inc.

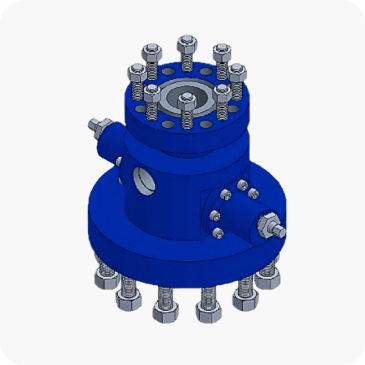

Premier Flanged Blow-Out Preventer 500F
Single or Dual Ram
5000 PSI

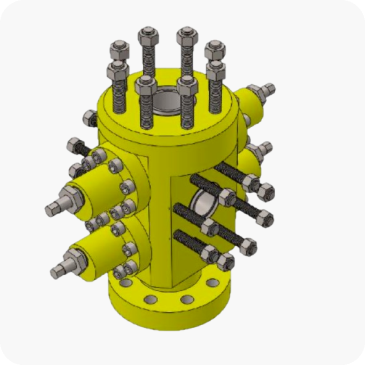

Premier Dual Ram Flanged Blow-Out Preventer 1000F
Snap-Loc™, Studded Outlets, NACE
10,000 PSI
10,000 PSI
Built to Hold
Why WSI BOPs
Snap-Loc™ Seal + Inter-Locking Ram
Patentd Premier Technology
WSI's patented Snap-Loc™ seal design and new inter-locking ram provide a positive, tamper-resistant closure that traditional ram designs cannot match. Combined with pressure-balanced rams that use well pressure to assist closure, operator effort is dramatically reduced when it matters most.
Forged Alloy Steel Body
Premier T-Series and F-Series BOPs are machined from forged alloy steel - eliminating all risk of casting porosity that can cause unexpected failure under pressure. Every unit is 100% pressure tested at the factory before shipping.
- No casting porosity - forged alloy steel only on Premier series
- 100% factory pressure tested - every Premier BOP, no exceptions
- Rated to -50°F for cold climate operations (Premier series)
- Standard NACE MR-01-75 for sour gas environments
10K
Maximum Rating
PSI — Model 1000F Flanged
Hydraulic Option
500F and 1000F flanged models offer optional hydraulic actuation for remote or automated well control applications.
7
Total Models
Across 3 product types
Full Ram Selection
All BOPs support blind rams for full shut-in. Economy models accommodate rod sizes 5/8" through 1-¾". Premier series: 1-¼" and 1-½". Ram material: STD-Buna, High Temperature, or NACE/HSN.
RAM & Material Data
Available ram sizes, materials, and NACE stainless steel options for all BOP product types.
Economy Hammer Cap - Ram Sizes
Models 150, 300 & 312
RAM Type Size
Blind Ram Full shut-in
Rod Rams 5/8" – 1"
Rod Rams. 1-⅛"
Rod Rams 1-¼"
Rod Rams 1-½"
Rod Rams 1-¾"
RAM Type Size
Blind Ram Full shut-in
Rod Rams 5/8" – 1"
Rod Rams. 1-⅛"
Rod Rams 1-¼"
Rod Rams 1-½"
Rod Rams 1-¾"
RAM Materials
STD-BUNA - High Temp - NACE / HSN
Ram screw & packing gland: Carbon Steel (Model 150) · Alloy Steel (300 & 312). NACE stainless steel optional on all.
Premier Series - Ram Sizes & Connections
Models 300T, 500T, 500F & 1000F
RAM Type Size
Blind Ram Full shut-in
Rod Rams 1-¼"
Rod Rams 1-½"
300T & 500T Connections
Box (Up) Pin (Down) 2-⅜" EUE 2-⅜" EUE
2-⅞" EUE 2-⅞" EUE
3-½" EUE 3-½" EUE
3" LP 3-½" EUE
3" LP 3" LP
500F & 1000F Flange Options
500F: 2-9/16"/5M or 7/10M BTM · 5K Top × Bottom (10M BTM option on dual ram)
1000F: 2-9/16"/10M or 7/10M BTM · Studded side outlets only
Alternative flange sizes available upon request.
Protect Your Well. Call UPC Global Today
Our team will help you select the right BOP type, pressure rating, connection configuration, and ram sizes for your application. NACE and high-temperature options available on all economy models.
