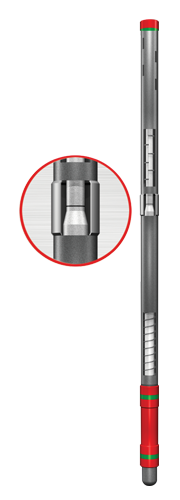

Hybrid-X Downhole Gas/Sand/Solids Separator

In all production, naturally occurring gases and formation sand, salt, scale, corrosion, aspahalthenes, and other solid contaminants enter the wellbore and create pumping inefficiencies that severely diminish production and can contribute to increased maintenance costs and unnecessary failures. The patented SPIRIT Hybrid-XTM Gas/Sands/Solids Separator is a simple, effective tool that uses cyclonic motion and internal baffling for effective downhole separation.

• Agitates and breaks apart gas-fluid emulsions

• Captures sand and solids in the mud joint

• Clean and gas free production fluid fills the pump intake permitting greater production and pump efficiency

• Reduces excessive pump wear, sticking plungers, surface equipment wear or damage, pump fouling, and flow line fouling

• Restores and optimizes rod pumping efficiency and longer component life

• Easy to transport, assemble and run


• Production volumes ≤130bbl/day and ≤200 bbl/day

• Production flows with higher gas volumes

• Production flows with sand/solids contamination

Available Sizes

• 2-7’8”with 2-3/8” Pins ≤130bbl/day

• 3-1/2”with 2-7/8” Pins ≤200bbl/day

• In two, easy to transport and assemble 10’ sections
